RTX 4090 laptop GPU gets 20% performance boost after shunt mod, beats the mobile RTX 5090, on average — reduced resistance boosts power to 240W

Shunt mods on mobile devices are always exciting because they seem to push the boundaries of what’s possible in a more practical way. Laptops are thermally constrained and, thus, power-limited compared to their desktop counterparts. Even a fully specced-out mobile GPU can’t compete against its desktop variant, so when someone tries to break through the manufactured barriers to unlock its full potential, well, we let the results speak for themselves. And the numbers coming out of this Reddit user’s laptop are nothing short of impressive.

Zephyrus M16 4090 Shunt Modded – Thin and Light Laptop Matches 5090 Laptops from r/GamingLaptops

On the r/GamingLaptops subreddit, user u/thatavidreadertrue (we’ll call him Avid) details their experience shunt-modding an Asus ROG Zephyrus M16 gaming laptop with an RTX 4090, and they come with the benchmarks to back it all up. For those unaware, shunt-modding essentially refers to tricking your GPU into thinking it’s consuming way less power than it actually is. This allows the GPU to boost higher and for longer before thermal-throttling, enabling the silicon to be overclocked through clever electronic surgery rather than brute-forcing the cooling.

In Avid’s case, they took a 1 mΩ resistor and placed it in parallel with the GPU’s existing 5 mΩ shunt resistor on the motherboard. Through Ohm’s law, that comes out to an 83% reduction in resistance, meaning the GPU is now underreporting its wattage by roughly 6x (down to just 0.83mΩ). The 4090 in the Zephyrus M16 has a 150W TGP, meaning the firmware won’t allow it to go past that. But with the shunt mod, the GPU’s internal logic is altered, so when it says it’s consuming 40-45W, it’s actually drawing around 240W in reality.

This allows for a pretty incredible bump in performance, so much so that this 4090 starts to match or even outperform the RTX 5090 mobile in a multitude of scenarios. Avid didn’t test any games, but the synthetic benchmarks are enough to give us an idea. The most drastic difference comes in Solar Bay Extreme, where the shunt-modded 4090 scored 24,617 points, which was 35% higher than the “next best M16” which could only manage 18,166. Compared to the average 5090 laptop that can achieve 22,877 points, our 4090 with wings was still 7.6% ahead.

Swipe to scroll horizontally

Benchmark	Shunt-modded Zephyrus M16	Average Zephyrus M16	Improvement	Average RTX 5090 laptop	Difference vs. 5090 laptop
Speedway	6911	5673	+21.8%	6307	+9.6%
Steel Nomad	6137	5079	+20.8%	6159	-0.4%
Steel Nomad Light	27498	22466	+22.4%	26137	+5.2%
Port Royal	16323	13564	+20.3%	16321	+0.0%
Time Spy graphics	25444	23402	+8.7%	24949	+2.0%
Time Spy overall	23106	22031	+4.9%	23076	+0.1%
Solar Bay Extreme	24617	18166	+35.5%	22877	+7.6%
Average Gain	Row 7 – Cell 1	Row 7 – Cell 2	+19.2%	Row 7 – Cell 4	+3.5%

There was essentially no difference in Port Royal, though, and the shunt mod was actually a smidge slower in Steel Nomad, but across all tests, the average gain was still 3.5% compared to a regular 5090 mobile, and almost 20% compared to the other 4090 GPUs in the Zephyrus M16. To deal with the extra heat, all Avid had to do was upgrade the liquid metal to PTM7950 phase-change thermal pads, and swap out the stock VRM thermal pads with Upsiren UX Pro Ultra.

While thermal details were scarce, Avid did mention in a comment that the 4090 gets up to 80-84°C but “doesn’t thermal throttle” while the CPU can get a bit toasty at around 90°C. We also learned that Avid undervolts the shunt-modded 4090, limiting the voltage to 800mV for gaming, which makes sense since otherwise the GPU would keep boosting to potentially dangerous levels.

Overall, this config can strike a nice balance between power, performance, temps, and noise. That’s before we even factor in the price, because Avid actually got this Zephyrus M16 from the secondhand market for only $1600, which is a good deal in and of itself. But, when you consider that it beats an RTX 5090 laptop after modding for almost no additional charge, it transforms into next-level value.

Image 1 of 2

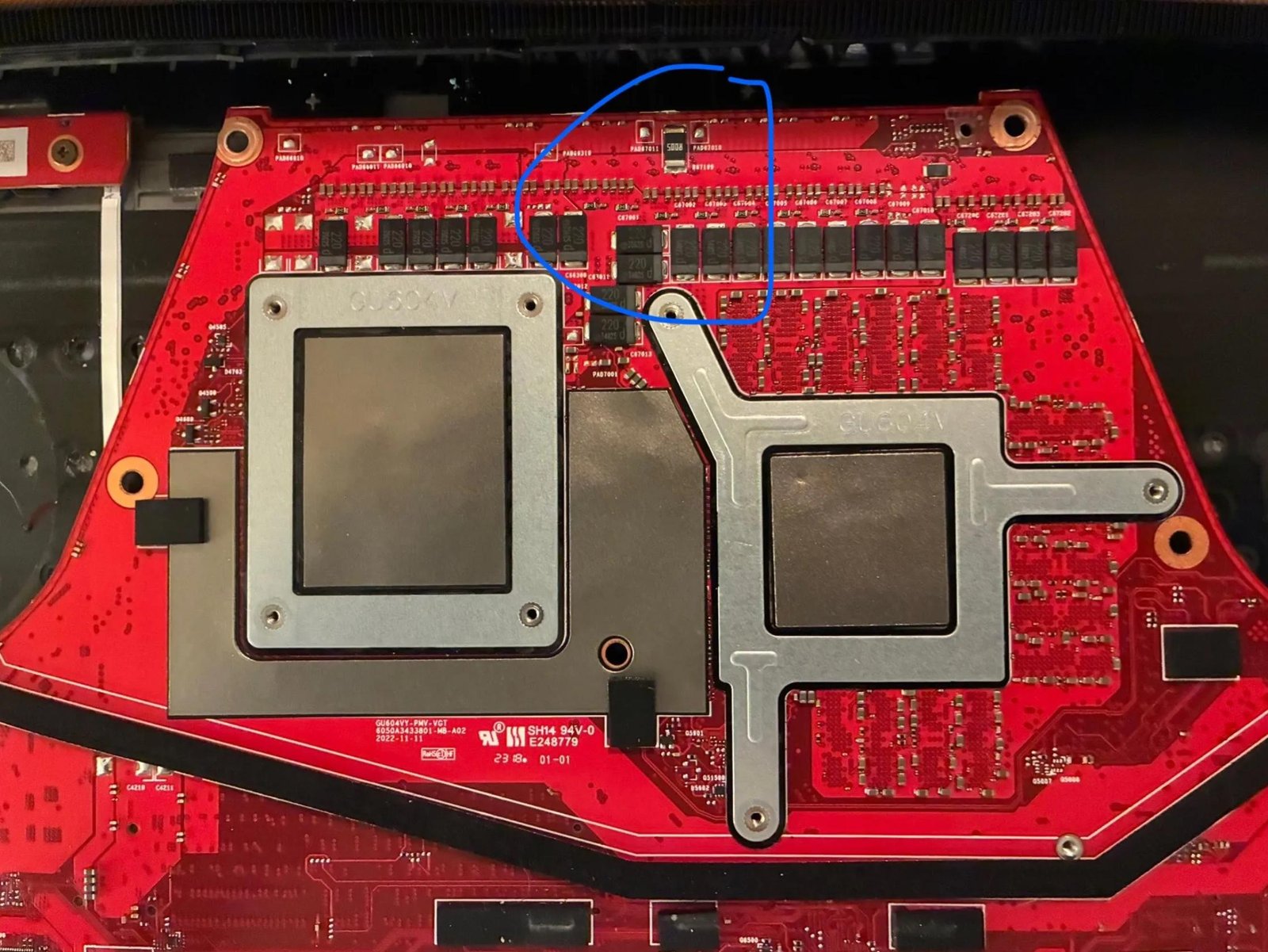

Shunt-modding an RTX 4090 laptop GPU by stacking a resistor atop an existing one — The 5 mΩ shunt resistor (before)(Image credit: u/thatavidreadertrue)

As always, a disclaimer is due: Messing with your hardware on this level can cause irreparable harm to your device, especially if you’re not sure what you’re doing. The machine is designed with a certain thermal and power envelope in mind, so bypassing that can only lead to so much improvement before you hit the point of diminishing returns. However, if there’s room, Avid’s shunt mod shows us it doesn’t take much to raise the ceiling.
